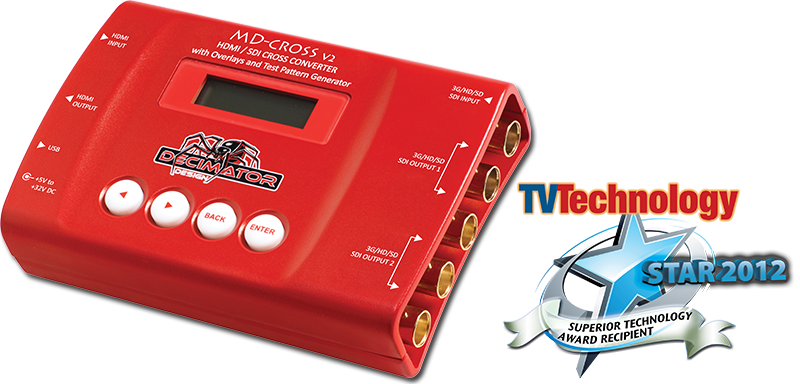

HDMI / SDI CROSS CONVERTER
with Scaling, Frame Rate Conversion, Overlays,
Video Test Pattern Generator and Audio Tone Generator
MSRP US$395

• Supports both 3G level A and B on the input and output. Allowing conversion between A and B.

• Horizontal and/or Vertical image flipping via the built in scaler.

• 4 x (3G/HD/SD)-SDI outputs, that allow it to be used as a 1 to 4 distribution amplifier. Output pair 1 can either be a copy of the SDI input (default) or the same as pair 2.

• Horizontal and/or Vertical image flipping via the built in scaler.
• Features the following 14 modes:

• SDI IN to HDMI and SDI OUT
• SDI IN to SDI OUT and HDMI IN to HDMI OUT
• SDI IN to SDI OUT and Scaled SDI IN to HDMI OUT
• SDI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
• HDMI IN to SDI OUT and SDI IN to HDMI OUT
• HDMI IN to HDMI and SDI OUT
• HDMI IN to SDI OUT and Scaled SDI IN to HDMI OUT
• HDMI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
• Scaled SDI IN to SDI OUT and SDI IN to HDMI OUT
• Scaled SDI IN to SDI OUT and HDMI IN to HDMI OUT
• Scaled SDI IN to HDMI and SDI OUT
• Scaled HDMI IN to SDI OUT and SDI IN to HDMI OUT
• Scaled HDMI IN to SDI OUT and HDMI IN to HDMI OUT
• Scaled HDMI IN to HDMI and SDI OUT

• Professional 3G/HD/SD Test Pattern Generator featuring:

• 26 Selectable Output Formats
• 54 Test Patterns including Luma and Chroma Zone-plates

• Includes the same Down Up Cross Converter from our multi-award winning MD-DUCC, allowing either the HDMI or SDI input to be scaled and/or frame rate converted to the required standard.

• The MD-CROSS is a truly portable converter, that incorporates a new easy to use LCD and button control system. This gives you easy access to all of the amazing features that have been unavailable without a computer until now. The days of having to play with annoying dip switches or having to carry around a computer to change a simple setting are gone.

• This unit also includes:

• (3G/HD/SD)-SDI Active Loop-Through Output
• Full 16-Channel Audio Metering Overlays
• Adjustable Safe Title and Safe Action Overlays and static Center Cross

• Text Overlays

• USB port for control and firmware updates

• New Metal Thread Locking DC Power Socket

• Power Supply, HDMI Cable and USB Cable

HDMI / SDI CROSS CONVERTER
with Scaling, Frame Rate Conversion, Overlays,
Video Test Pattern Generator and Audio Tone Generator
(This unit has been replaced by the MD-CROSS V2)

• Support both 3G level A and B on the input and output. Allowing conversion between A and B.

• Horizontal and/or Vertical image flipping via the built in scaler.

• SDI IN to HDMI and SDI OUT
• SDI IN to SDI OUT and HDMI IN to HDMI OUT
• SDI IN to SDI OUT and Scaled SDI IN to HDMI OUT
• SDI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
• HDMI IN to SDI OUT and SDI IN to HDMI OUT
• HDMI IN to HDMI and SDI OUT
• HDMI IN to SDI OUT and Scaled SDI IN to HDMI OUT
• HDMI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
• Scaled SDI IN to SDI OUT and SDI IN to HDMI OUT
• Scaled SDI IN to SDI OUT and HDMI IN to HDMI OUT
• Scaled SDI IN to HDMI and SDI OUT
• Scaled HDMI IN to SDI OUT and SDI IN to HDMI OUT
• Scaled HDMI IN to SDI OUT and HDMI IN to HDMI OUT
• Scaled HDMI IN to HDMI and SDI OUT

• Professional 3G/HD/SD Test Pattern Generator featuring:

• 26 Selectable Output Formats
• 54 Test Patterns including Luma and Chroma Zone-plates

• Includes the same Down Up Cross Converter from our multi-award winning MD-DUCC, allowing either the HDMI or SDI input to be scaled and/or frame rate converted to the required standard.

• The MD-CROSS is a truly portable converter, that incorporates a new easy to use LCD and button control system. This gives you easy access to all of the amazing features that have been unavailable without a computer until now. The days of having to play with annoying dip switches or having to carry around a computer to change a simple setting are gone.

• This unit also includes:

• (3G/HD/SD)-SDI Active Loop-Through Output
• Full 16-Channel Audio Metering Overlays
• Adjustable Safe Title and Safe Action Overlays and static Center Cross
• Text Overlays
• USB port for control and firmware updates
• New Metal Thread Locking DC Power Socket
• Power Supply, HDMI Cable and USB Cable
