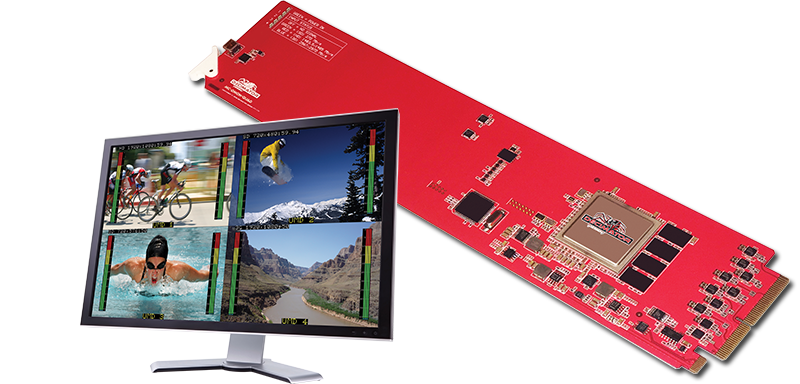

MC-DMON-QUAD


1 to 4 Channel (3G/HD/SD)-SDI MultiViewer
with Custom Layouts
US$295
(ETA May)

•  Supports 3G level A and B on inputs and output, allowing
   conversion between 3G level A and B
•  Low cost miniature (3G/HD/SD)-SDI 1 to 4 MultiViewer
   or 4 to 1 input multiplexer
•  Custom Layouts with various standard layouts
•  16 Character UMD overlay per window with individual
   enables, custom positioning and size
•  8 Channel Audio Metering overlay per window with individual
   enables, custom positioning and size
•  Audio ID overlay
•  3 pin connector on the DR1-10B1G rear module allows
   for Dynamic UMD and Tallies via RS422/485 using the
   industry standard TSL protocol
•  Tallies can be applied to either Tally Boxes (Default) or
   Border
•  Tally boxes allows for up to 4 Tallies per window
•  Fast switching between inputs using Full-Screen scaling
•  Selectable output format in both Full-Screen MultiViewer
   mode
•  Low latency buffering for each input allowing
   non-synchronous inputs
•  4 x (3G/HD/SD)-SDI inputs with auto detection
   (29 Formats supported in total)
•  Each quadrant is independent of the others, allowing any
   3G/HD/SD format of any frame rate to be displayed
   simultaneously
•  Variable aspect ratios per quadrant
•  In Pass-Through mode the selected input is passed through
   to both the (3G/HD/SD)-SDI outputs
•  USB Mini B port for control and firmware updates
•  Supports openGear DashBoard for control
•  The DR1-10B1G rear is sold separately and has 10 BNC
   connectors and a 3 pin connector for RS422/485.


The DMON-16S manual can be used
as a guide for using the UCP.
