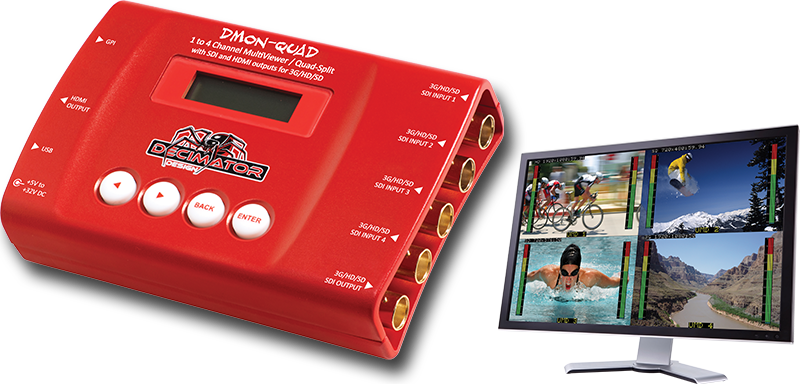

DMON-QUAD


4 x (3G/HD/SD)-SDI to HDMI Converters with 1 to 4 MultiViewer, Custom Layouts and 8 Channel Audio Meters
MSRP US$295

•  Supports 3G level A and B on inputs and output, allowing
   conversion between 3G level A and B
•  Low cost (3G/HD/SD)-SDI 1 to 4 Multi-Viewer or
   4 to 1 input multiplexer
•  Custom Layouts with various standard layouts
•  16 Character UMD overlay per window with individual
   enables, custom positioning and size
•  8 Channel Audio Metering overlay per window with
   individual enables, custom positioning and size
•  Horizontal and/or Vertical image flipping per window
•  Audio ID overlay
•  Tallies can be applied to either Tally Boxes (Default) or
   Border
•  Tally boxes allows for up to 4 Tallies per window
•  Fast switching between inputs using Full-Screen scaling
•  Selectable output format in both Full-Screen Multi-Viewer
   mode
•  Low latency buffering for each input allowing
   non-synchronous inputs
•  Linked (3G/HD/SD)-SDI and HDMI outputs
•  4 x (3G/HD/SD)-SDI inputs with auto detection
   (26 Formats supported in total)
•  Each window is independent of the others, allowing any
   3G/HD/SD format of any frame rate to be displayed
   simultaneously
•  Variable aspect ratios per window
•  In Pass-Through mode the selected input is passed
   through to both the (3G/HD/SD)-SDI and HDMI outputs
•  The DMON-QUAD is a truly portable converter, that
   incorporates our easy to use LCD and button control
   system. This gives you easy access to most of the amazing
   features without using complicated LED/button control,
   dip switches or having to carry around a computer to change
   a simple setting.
•  This unit also includes:
   -  GPI on RJ-45 connector for Tallies and Remote Switching
   -  RS422/485 on RJ-45 connector for Dynamic UMD and Tallies
   -  USB port for control and firmware updates
   -  Robust Aluminium box
   -  Metal Thread Locking DC Power Socket
   -  Power Supply, HDMI Cable and USB Cable



The DMON-16S manual can be used
as a guide for using the UCP.
