1 to 6 Channel MultiViewer
with SDI and HDMI outputs for 3G/HD/SD
and Custom Layouts
(Now Shipping)

•  (NEW) Support both 3G level A and B on the input and output.
     Allowing conversion between 3G level A and B.
•  Low cost miniature (3G/HD/SD)-SDI 1 to 6 channel Multi-Viewer or
    6 to 1 input multiplexer
•  6 x (3G/HD/SD)-SDI active loop copies of each input

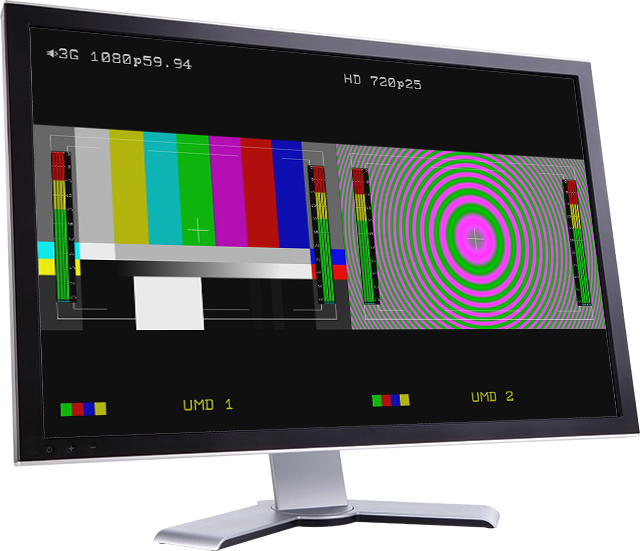

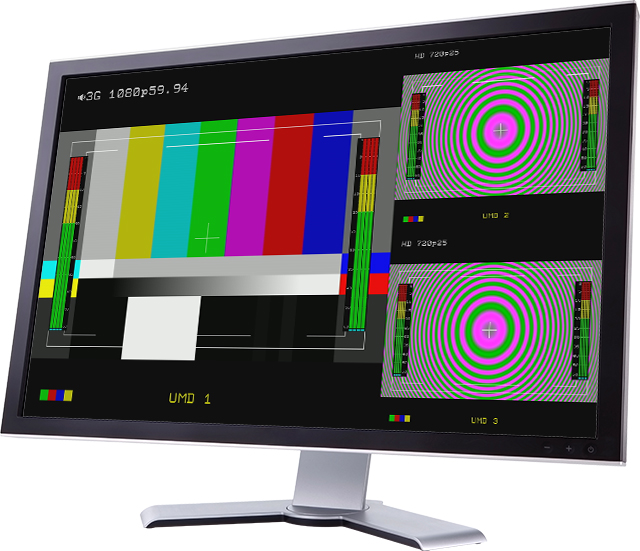

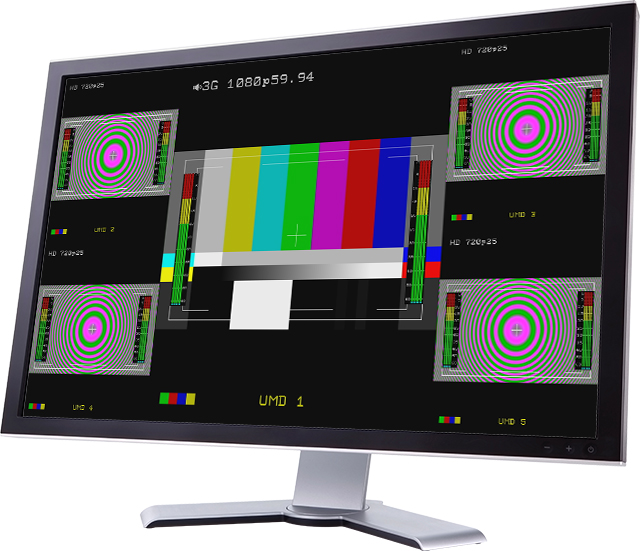

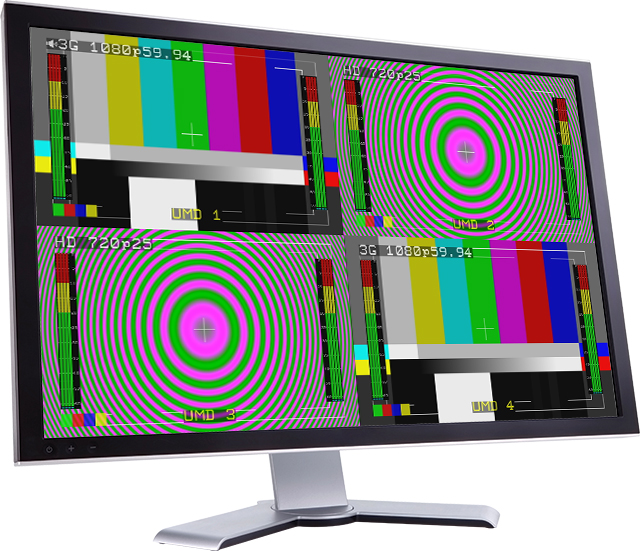

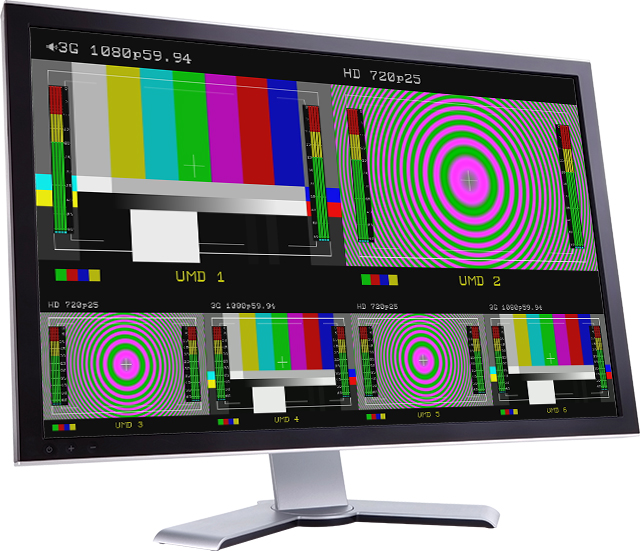

•  Custom Layouts with various standard layouts
•  16 Character UMD overlay per window with individual enables,
    custom positioning and size
•  16 Channel Audio Metering overlay per window with individual
    enables, custom positioning and size
•  Safe Action and Safe Title overlay per window with individual
    enables and adjustment
•  Centre Cross overlay per window with individual enable
•  Audio ID overlay
•  Tallies can be applied to either Tally Boxes (Default),
    Outside Safe Action Area or Border
•  Tally boxes allows for up to 4 Tallies per window
    (Green, Red, Blue and Yellow)
•  Load and restore Custom Layouts

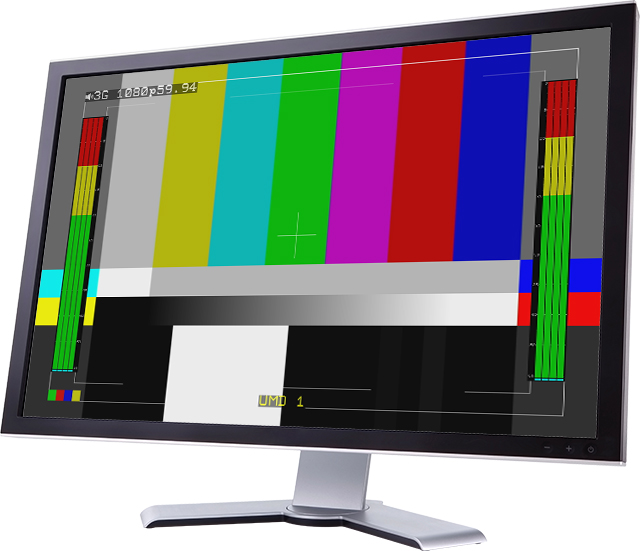

•  Fast switching between inputs using Full-Screen scaling
•  Selectable output format in both Full-Screen and Multi-Viewer mode
•  Low latency buffering for each input allowing non-synchronous
•  Linked (3G/HD/SD)-SDI and HDMI outputs
•  6 x (3G/HD/SD)-SDI inputs with auto detection
    (6 Formats supported in total)
•  Each window is independent of the others, allowing any
    3G/HD/SD format of any frame rate to be displayed
•  Variable aspect ratios per window
•  Pass-Through mode allowing any of the 6 inputs to be
    selected and routed to both the (3G/HD/SD)-SDI and HDMI outputs

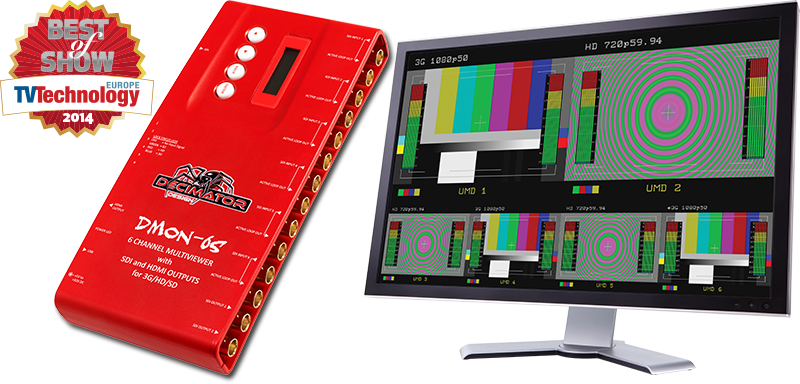

•  The DMON-6S is a truly portable converter, that incorporates
    our new easy to use LCD and button control system. This
    gives you easy access to most of the amazing features without
    using complicated LED/button control, dip switches or having to
    carry around a computer to change a simple setting.
•  This unit also includes:
    -  32 GPI on 37-pin D-SUB connector for Tallies and Remote Switching
    -  RS422/485 on 37-pin D-SUB connector for Dynamic UMD and
       Tallies via TSL protocol
    -  USB port for control and firmware updates
    -  Heavy duty metal box
    -  Metal Thread Locking DC Power Socket
    -  Power Supply, HDMI Cable and USB Cable

The DMON-16S manual can be used
as a guide for using the UCP.
