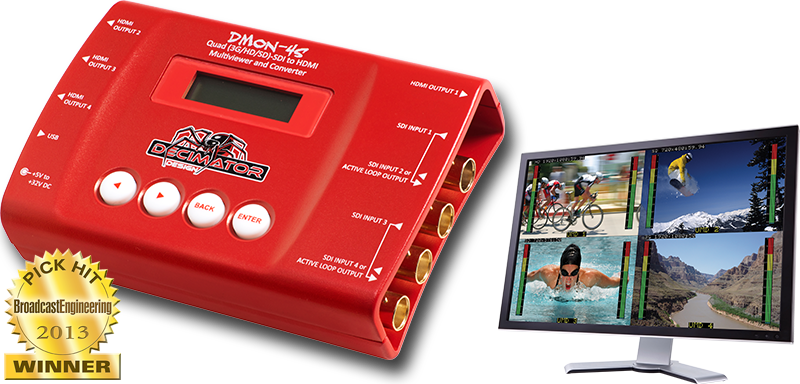

DMON-4S


4 x (3G/HD/SD)-SDI to HDMI Converters with 1 to 4 MultiViewer, Custom Layouts and 8 Channel Audio Meters
MSRP US$495

•  (NEW) Multi-View mode now includes 8 Channel Audio Metering
   overlay per window with individual enables, custom positioning
   and size


•  Support for both 3G level A and B on the inputs.

•  Horizontal and/or Vertical image flipping per window

•  Includes 4 independent mini HDMI outputs that can each output any
    of the four (3G/HD/SD)-SDI inputs or a Multi-View of all them.
    For example you could use the unit to have:
      - 4 independent SDI to HDMI converters
      - 3 independent SDI to HDMI converters with a quad-split output
      - 2 independent SDI to 2 x HDMI converters with loop through
      - A single SDI or Multi-View to 4 x HDMI outputs

•  Inputs 2 and 4 can be individually changed to output active loop
    copies of inputs 1 and 2 respectively.

•  Multi-View mode offers:
   - Custom Layouts with various standard layouts
   - Load and restore Custom Layouts
   - Fast switching between inputs using Full-Screen scaling
   - Selection of audio from any input
   - 16 Character UMD overlay per window with individual enables,
      custom positioning and size
   - Low latency buffering for each input allowing non-synchronous
      inputs
   - Each window is independent of the others, allowing any
      3G/HD/SD format of any frame rate to be displayed
      simultaneously
   - Variable aspect ratios per window


•  The DMON-4S is a truly portable converter, that incorporates our new
    easy to use LCD and button control system.

•  This unit also includes:
      - USB port for control and firmware updates
      - Heavy duty metal box
      - Metal Thread Locking DC Power Socket
      - Power Supply, HDMI Cable and USB Cable




The DMON-16S manual can be used
as a guide for using the UCP.
