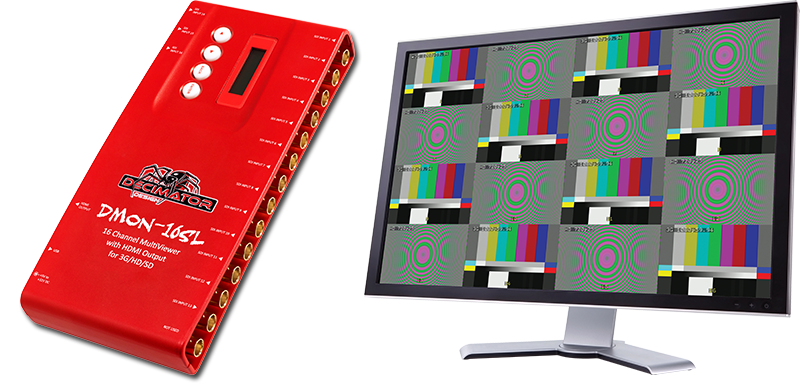

DMON-16SL


1 to 16 Channel MultiViewer
with HDMI output for 3G/HD/SD
and Custom Layouts
US$795
(Now Shipping)

•  (NEW) Support for both 3G level A and B on the inputs.
•  Low cost miniature (3G/HD/SD)-SDI 1 to 16 channel Multi-Viewer
•  Custom Layouts with various standard layouts
•  16 Character UMD overlay per window with individual enables,
    custom positioning and size
•  Audio ID overlay
•  Load and restore Custom Layouts
•  Fast switching between inputs using Full-Screen scaling
•  Selectable output format in both Full-Screen and Multi-Viewer mode
•  Low latency buffering for each input allowing non-synchronous
    inputs
•  16 x (3G/HD/SD)-SDI inputs with auto detection
    (26 Formats supported in total)
•  Each window is independent of the others, allowing any
    3G/HD/SD format of any frame rate to be displayed
    simultaneously
•  Variable aspect ratios per window
•  Pass-Through mode allowing any of the 16 inputs to be
    selected and routed to the the HDMI output
•  In Pass-Through mode the selected input is passed through
    to the HDMI output
•  The DMON-16SL is a truly portable converter, that incorporates
    our new easy to use LCD and button control system. This
    gives you easy access to most of the amazing features without
    using complicated LED/button control, dip switches or having to
    carry around a computer to change a simple setting.
•  This unit also includes:
    -  USB port for control and firmware updates
    -  Heavy duty metal box
    -  Metal Thread Locking DC Power Socket
    -  Power Supply, HDMI Cable and USB Cable




The DMON-16S manual can be used
as a guide for using the UCP.
