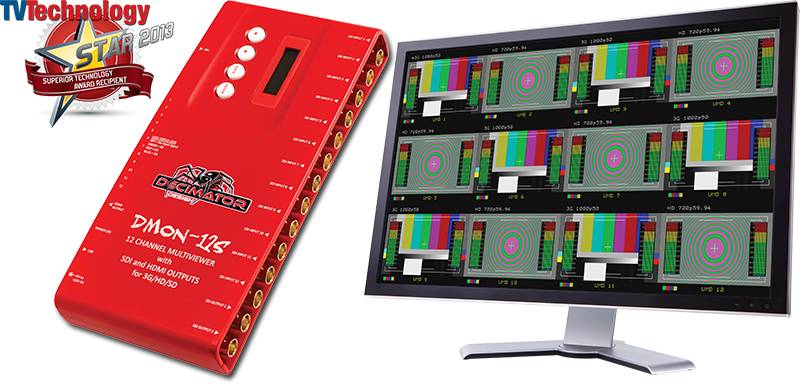

1 to 12 Channel MultiViewer
with SDI and HDMI outputs for 3G/HD/SD
and Custom Layouts
MSRP US$1295

  • Support both 3G level A and B on the input and output. Allowing conversion between 3G level A and B.
  • Low cost miniature (3G/HD/SD)-SDI 1 to 12 channel Multi-Viewer or 12 to 1 input multiplexer

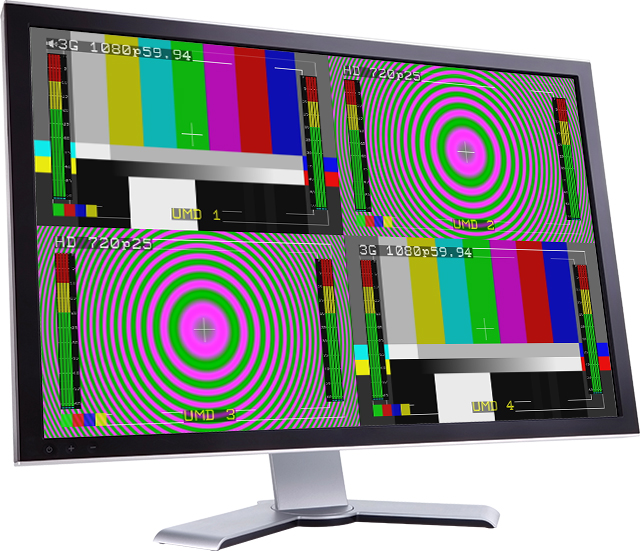

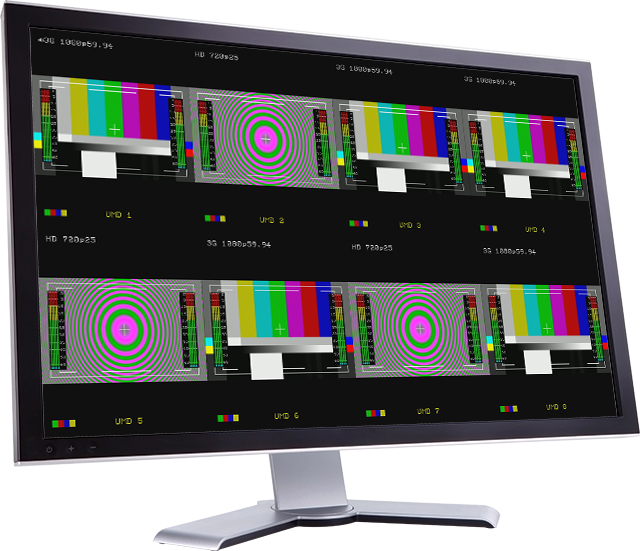

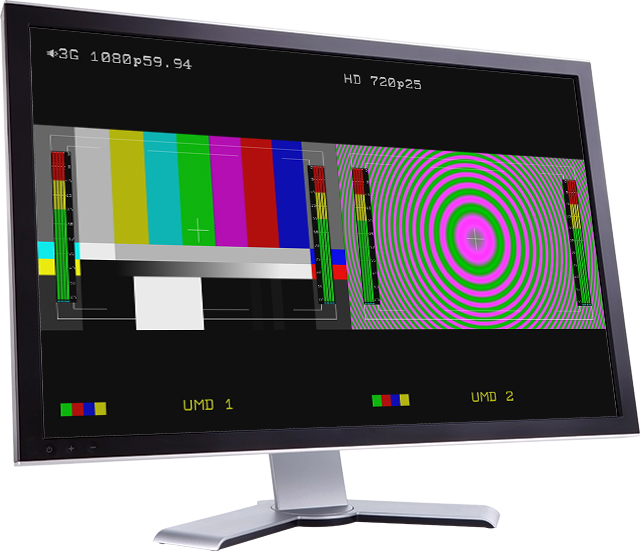

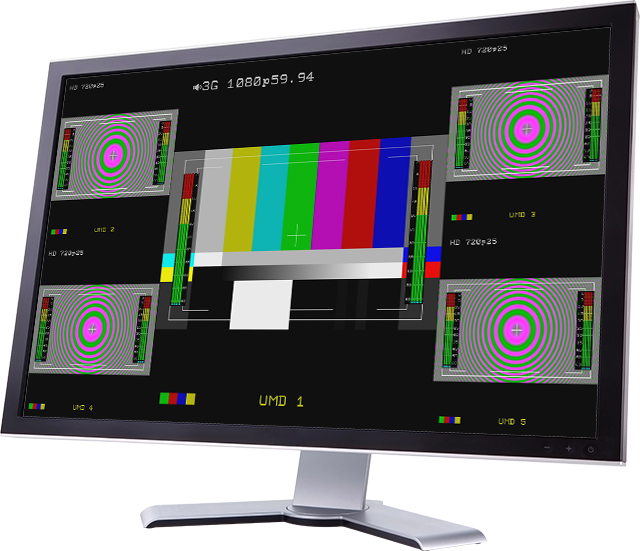

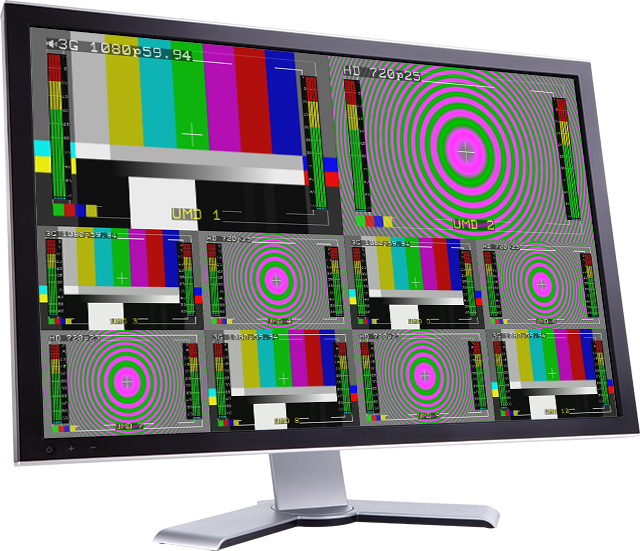

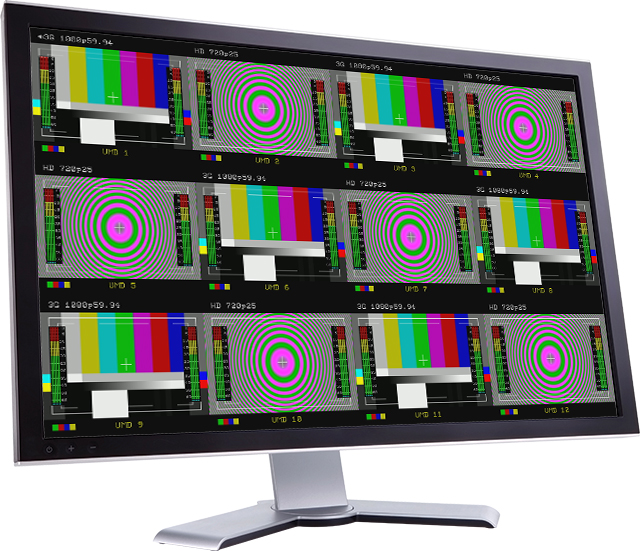

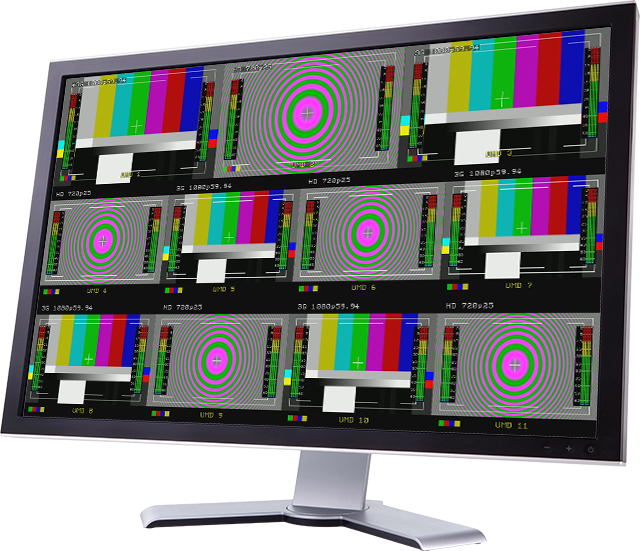

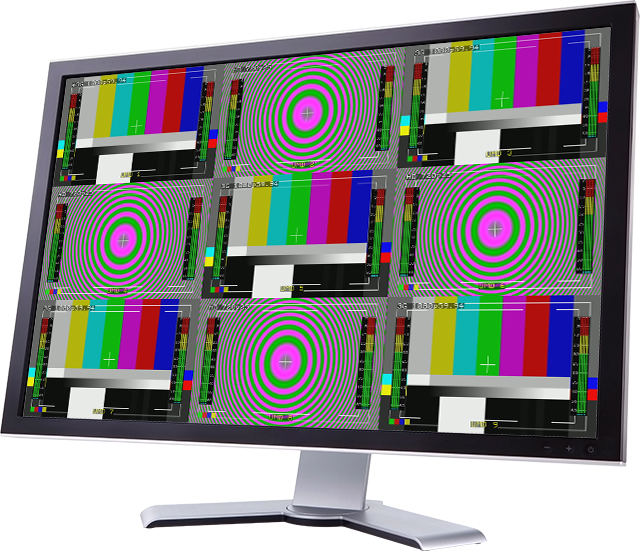

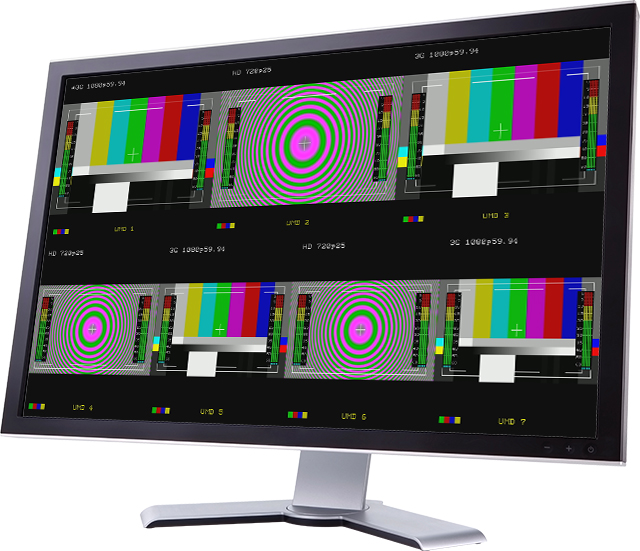

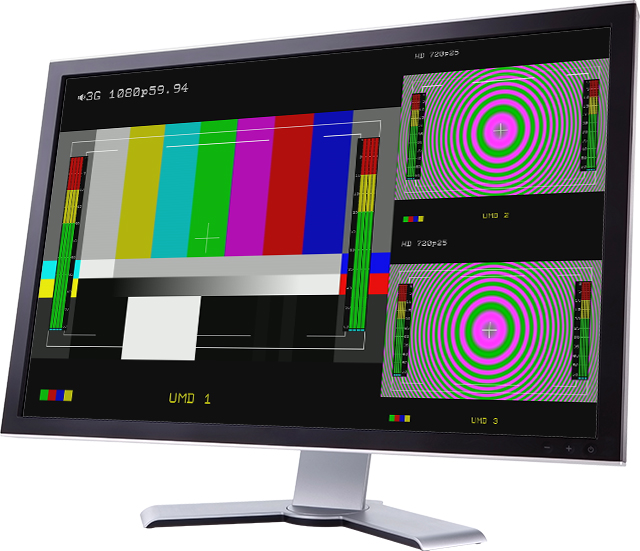

  • Custom Layouts with various standard layouts
  • 16 Character UMD overlay per window with individual enables, custom positioning and size
  • 16 Channel Audio Metering overlay per window with individual enables, custom positioning and size
  • Safe Action and Safe Title overlay per window with individual enables and adjustment
  • Centre Cross overlay per window with individual enable
  • Audio ID overlay
  • Tallies can be applied to either Tally Boxes (Default), Outside Safe Action Area or Border
  • Tally boxes allows for up to 4 Tallies per window (Green, Red, Blue and Yellow)
  • Load and restore Custom Layouts
  • Fast switching between inputs using Full-Screen scaling
  • Selectable output format in both Full-Screen and Multi-Viewer mode
  • Low latency buffering for each input allowing non-synchronous inputs
  • Linked (3G/HD/SD)-SDI and HDMI outputs
  • 12 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
  • Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
  • Variable aspect ratios per window
  • Pass-Through mode allowing any of the 12 inputs to be selected and routed to both the (3G/HD/SD)-SDI and HDMI outputs
  • The DMON-12S is a truly portable converter, that incorporates our new easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.
  • This unit also includes:
  • 32 GPI on 37-pin D-SUB connector for Tallies and Remote Switching
  • RS422/485 on 37-pin D-SUB connector for Dynamic UMD and Tallies via TSL protocol
  • USB port for control and firmware updates
  • Heavy duty metal box
  • Metal Thread Locking DC Power Socket
  • Power Supply, HDMI Cable and USB Cable

The DMON-16S manual can be used
as a guide for using the UCP.
