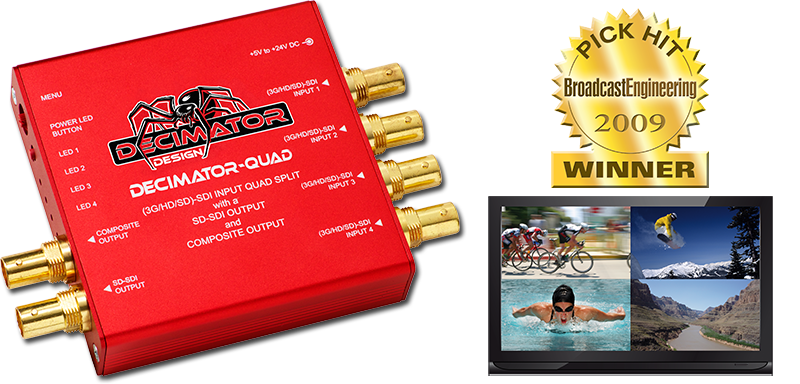

DECIMATOR-QUAD


MINIATURE (3G/HD/SD)-SDI Quad-Split with
SD-SDI and Composite (PAL/NTSC) Outputs
MSRP US$795

•  Low cost miniature 3G/HD/SD-SDI 4 to 1 Quad Split or
•  Down-converter with 4 to 1 input multiplexer.
•  Your choice of either a NTSC or PAL output
•  4 x 3G/HD/SD-SDI inputs with auto detection
    (26 Formats supported in total)
•  All 4 inputs or a selected input displayed on a single
    Composite and SD-SDI output
•  Low latency buffering for each input allowing
    non-synchronous inputs
•  Each quadrant is independent of the others, allowing any
    3G/HD/SD format of any frame rate to be displayed
    simultaneously
•  Variable aspect ratios per quadrant
•  Size is 3.7”x3.7”x0.9” or (94mmx94mmx23mm)
