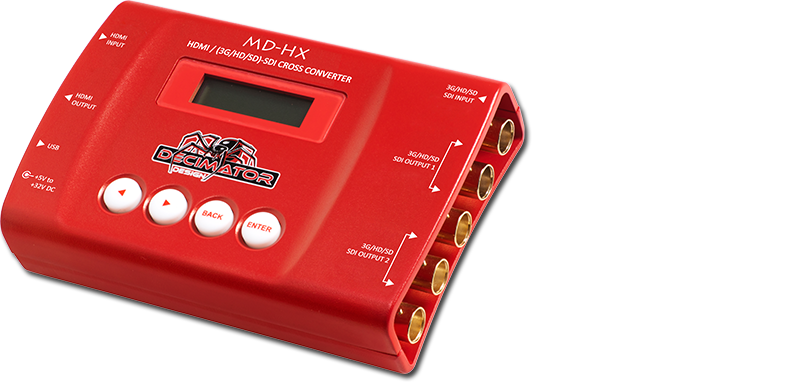

• The MD-HX is a small low power portable converter encased in a solid robust aluminium case and does not contain a noisy fan. Allowing it to be used in almost any environment.

• Allows either of the HDMI or SDI outputs to be simultaneously sourced from either the HDMI or SDI input or the new 2K Motion Adaptive Scaling Engine.

• Professional 3G/HD/SD Test Pattern Generator with 41 selectable output formats and 58 test patterns including Luma and Chroma Zone-Plates.

• Overlays for:

• 16-Channel Audio Metering

• Adjustable Safe Title and Safe Action

• Center Cross

• UMD Text

• Format Status

• Supports 204 VESA formats via HDMI input

• The 2K Motion Adaptive Scaling Engine can be driven by either the SDI or HDMI input, supports horizontal and/or vertical flipping.

• The 2K Motion Adaptive Scaling Engine can scale and/or frame rate convert between 245 input formats and 41 output formats. The supported formats are:

• 204 VESA formats in via HDMI input

• (1920 or 2048) x 1080p50/59.94/60 via HDMI or 3G-SDI (Level A or B)

• 1920 x 1080i60/59.94/50 via HDMI or HD-SDI

• (1920 or 2048) x 1080p30/29.97/25/24/23.98 via HDMI or HD-SDI

• (1920 or 2048) x 1080psf30/29.97/25/24/23.98 via HD-SDI

• 1280 x 720p60/59.94/50/30/29.97/25 via HDMI or HD-SDI

• 1280 x 720p24/23.98 via HD-SDI

• 720 x 480p59.94 or 720 x 576p50 via HDMI

• 720 x 480i59.94 (NTSC) or 720 x 576 (PAL) via HDMI or SD-SDI

That is an amazing 10,045 possible format conversions!

• Internal precision is not fixed and increases as required (for example, 32–40 bits or greater) during operations such as scaling and colour conversion to maintain accuracy.

• Decimator Design has developed advanced proprietary scaling technology that surpasses conventional polyphase approaches, providing markedly improved sharpness, reduced aliasing, and superior overall image quality.

• The audio pairs in the SDI and HDMI outputs can be rearranged as required.

• Includes 4 x (3G/HD/SD)-SDI outputs, that allow it to be used as a 1 to 4 distribution amplifier. Output pair 1 can either be a copy of the SDI input (default) or the same as pair 2.

• The audio pairs in the SDI and HDMI outputs can be rearranged as required.

• The MD-HX is a truly portable product that incorporates an easy-to-use LCD screen and button control system. This gives easy access to the outstanding features without using complicated LED/button controls, dip switches, or having to carry around a computer to change a simple setting.

• This unit also includes:

• USB port for control and firmware updates

• Metal Thread Locking DC Power Socket

• Power Supply and USB Cable

• Supports both 3G level A and B on the input and output. Allowing conversion between A and B.

• Horizontal and/or Vertical image flipping via the built in scaler.

• Combines several converters for the price of one (e.g. SDI to HDMI, HDMI to SDI, Down Up Cross Converter, etc.)

• Robust Aluminium Case with easy to use LCD and button control system.

• Features the following 14 modes:

• SDI IN to HDMI and SDI OUT
• SDI IN to SDI OUT and HDMI IN to HDMI OUT
• SDI IN to SDI OUT and Scaled SDI IN to HDMI OUT
• SDI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
• HDMI IN to SDI OUT and SDI IN to HDMI OUT
• HDMI IN to HDMI and SDI OUT
• HDMI IN to SDI OUT and Scaled SDI IN to HDMI OUT
• HDMI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
• Scaled SDI IN to SDI OUT and SDI IN to HDMI OUT
• Scaled SDI IN to SDI OUT and HDMI IN to HDMI OUT
• Scaled SDI IN to HDMI and SDI OUT
• Scaled HDMI IN to SDI OUT and SDI IN to HDMI OUT
• Scaled HDMI IN to SDI OUT and HDMI IN to HDMI OUT
• Scaled HDMI IN to HDMI and SDI OUT

• 4 x (3G/HD/SD)-SDI outputs, that allow it to be used as a 1 to 4 distribution amplifier. Output pair 1 can either be a copy of the SDI input (default) or the same as pair 2.

• The audio pairs in the SDI and HDMI outputs can be rearranged as required.

• Includes the same Down Up Cross Converter from our multi-award winning MD-DUCC, allowing either the HDMI or SDI input to be scaled and/or frame rate converted to the required standard.

• This unit also includes:

• USB port for control and firmware updates
• Metal Thread Locking DC Power Socket
• Power Supply, HDMI Cable and USB Cable
